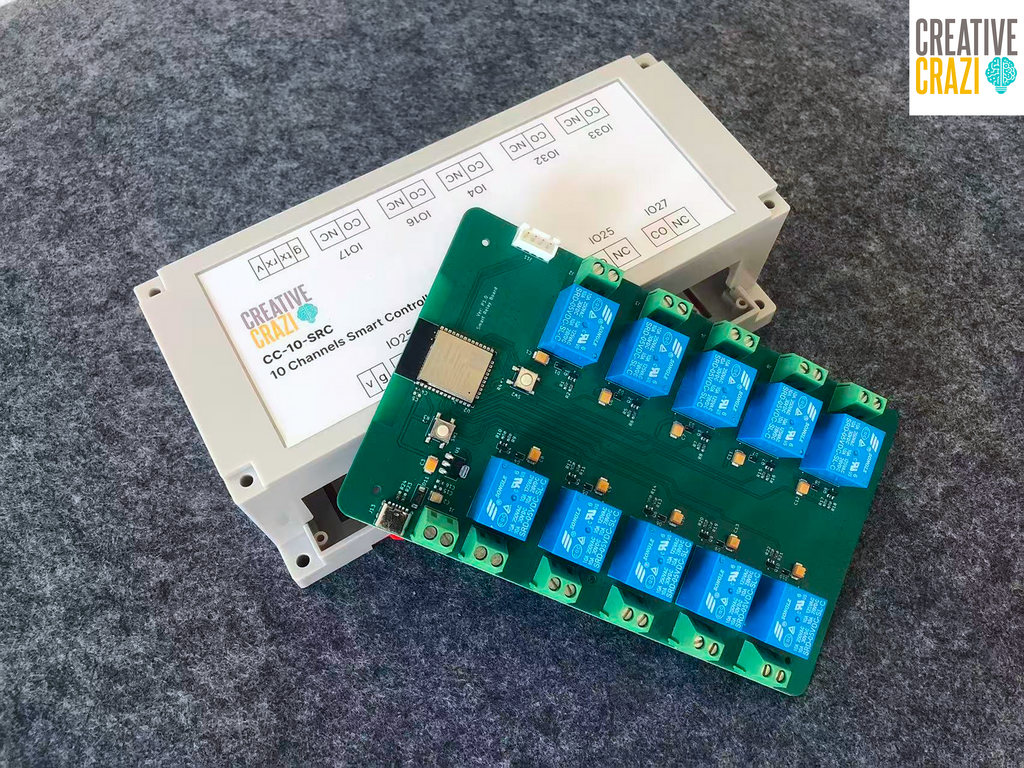

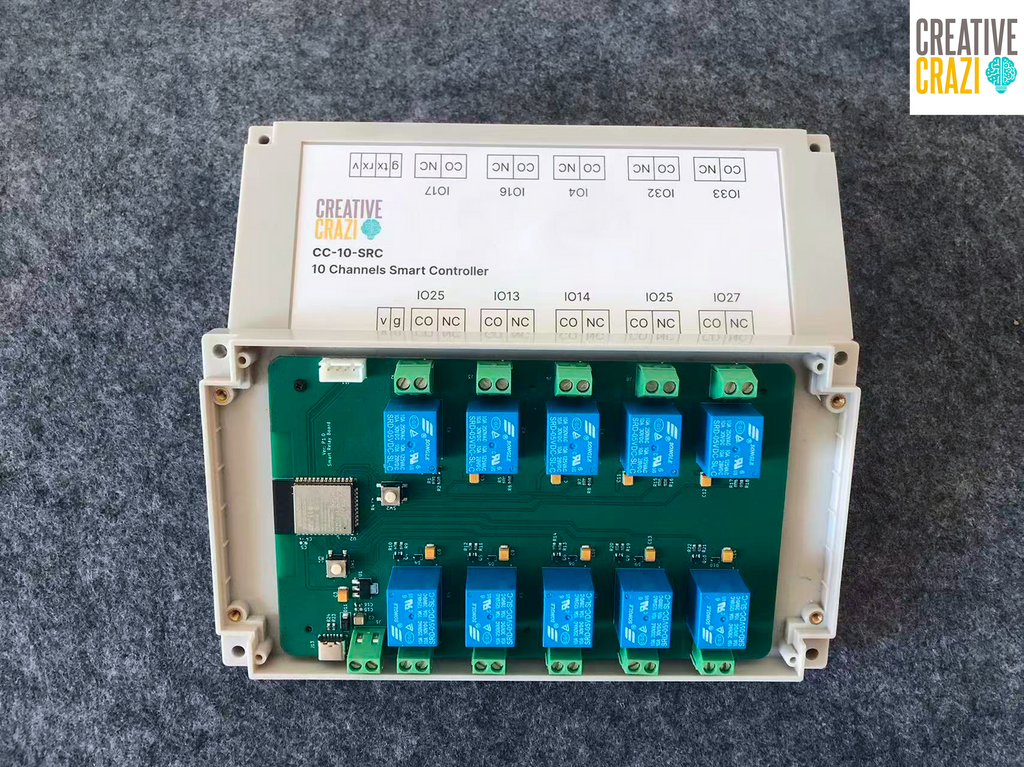

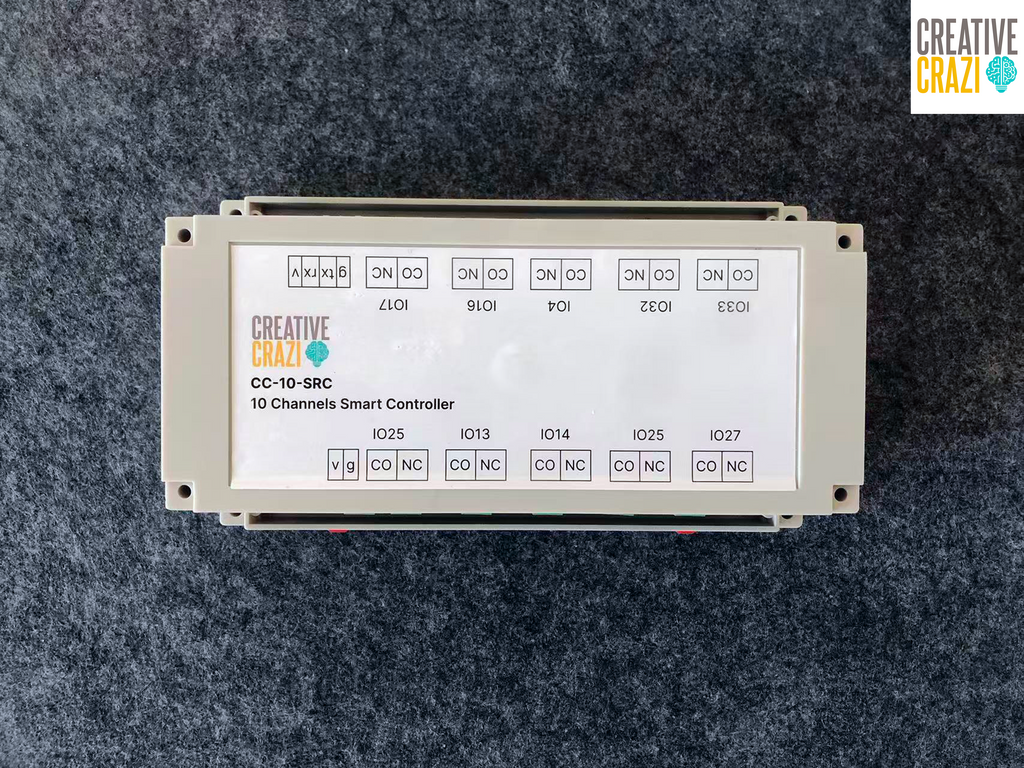

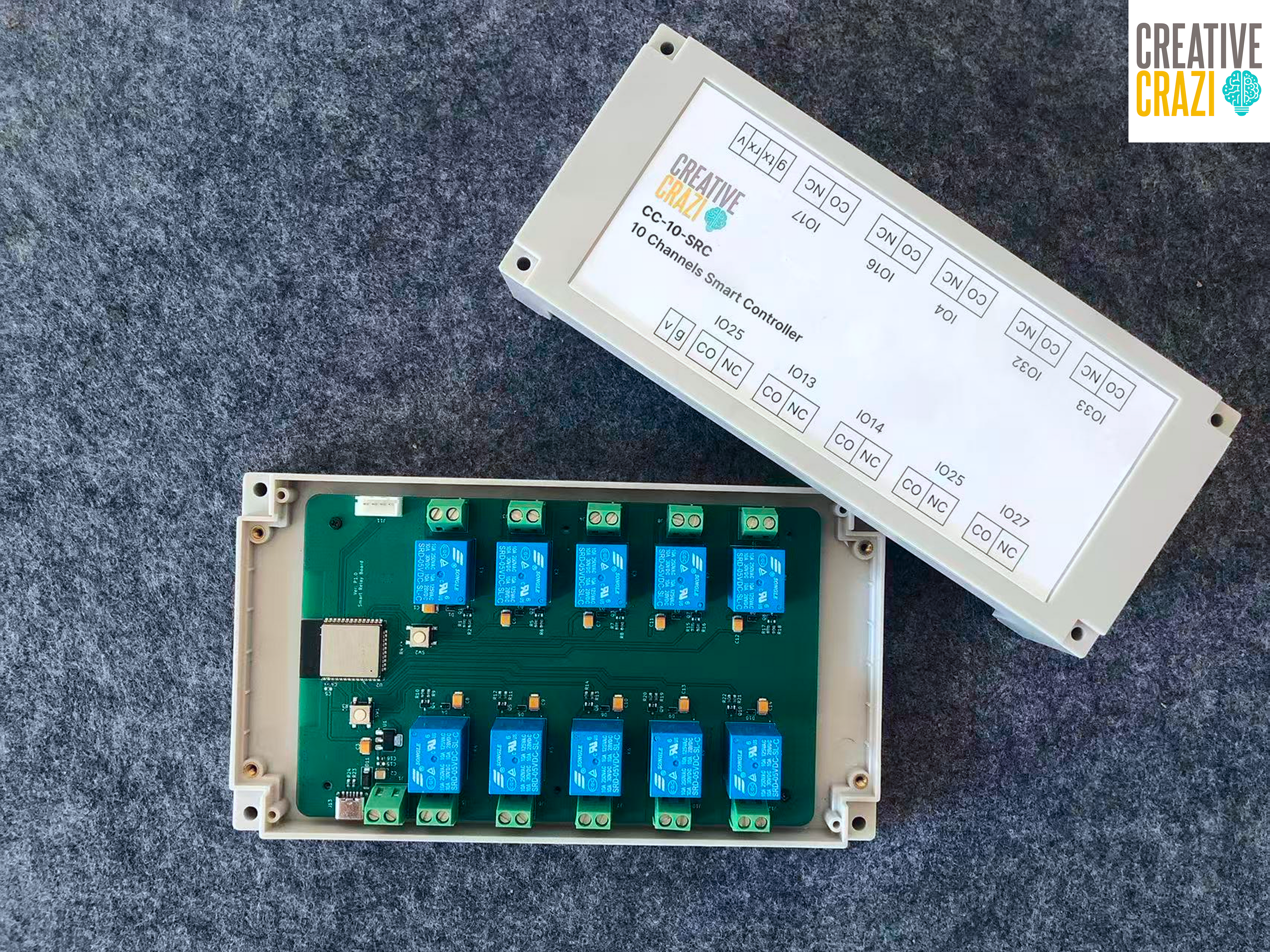

🔥 10-Channel ESP32-WROOM-32E Smart Relay Controller Board 🔥
Upgrade your smart home or industrial automation projects with the CC-10-SRC 10-Channel Smart Relay Controller! Powered by the robust ESP32-WROOM-32E module, this development board offers seamless Wi-Fi & Bluetooth (BLE) integration, onboard relays, and total flexibility for custom firmware and IoT platform deployment.
✨ KEY HIGHLIGHTS ✨
- ⚡ Powerful & Stable Performance: Equipped with the official ESP32-WROOM-32E module featuring a generous 4MB Flash memory, ensuring reliable operation for complex scripts and network stacks.
- 🔌 10 Onboard 5V Relays: Easily drive and control up to 10 independent electrical loads (AC up to 250V / DC 30V)—perfect for multi-zone automation.
- 🛠️ Full I/O Expansion & Developer Friendly: All GPIO ports and UART program download pins are cleanly broken out, making secondary development, debugging, and flashing custom firmware effortless.
- 🌐 Ready for ThingsBoard & Custom MQTT: Out-of-the-box support for ThingsBoard (built-in firmware options available) and easy integration with custom MQTT brokers (Home Assistant, Node-RED, etc.).
- 📐 Ergonomic & Modular Design: Features onboard programmable user buttons, standard EN reset buttons, clean terminal block layouts, and a dedicated enclosure case for clean, professional mounting.
📊 TECHNICAL SPECIFICATIONS 📊
| Core Controller | ESP32-WROOM-32E (Wi-Fi + BLE) |
| Flash Memory | 4MB Byte Flash |
| Power Input | DC 5V |
| Output Channels | 10 Channels (5V Relays) |
| Switching Capability | AC 250V / DC 30V Load Control |
| Pin Interfaces | Dedicated UART Download Port, Full GPIO Breakout |
| Controls | Onboard EN (Reset) & Boot / Programmable Buttons |
📦 WHAT'S INCLUDED & SUPPORT 📦
- 📖 User Manual Included: Complete with full pinout diagrams, terminal layouts, and wiring guides.
- 🚀 Built-in Firmware: Pre-loaded/supported ThingsBoard integration firmware for fast deployment.
- 💻 Custom Firmware Ready: Flash your own custom C++ / MicroPython / ESP-IDF code anytime.
- 📂 Source Code Access: Need the full source code for custom development? Contact us directly after purchase, and we'll gladly share the code package with you!
💡 APPLICATIONS 💡
- 🏠 Smart Home Automation & Lighting Systems
- 🏭 Industrial Equipment Control
- 🎓 IoT Secondary Development Learning & Fast Prototyping
- 📊 Remote Monitoring & Custom MQTT Automation Networks
